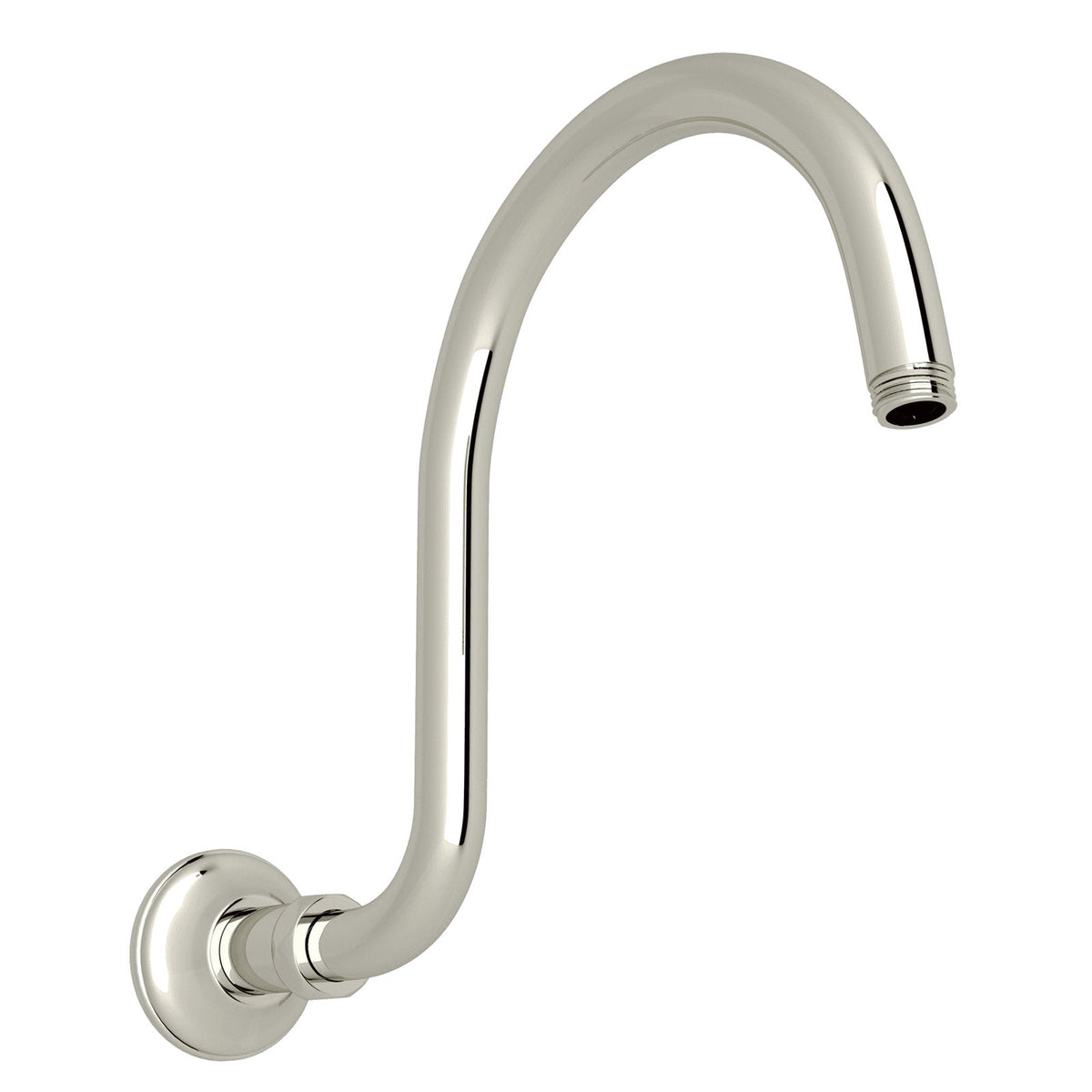

12-Inch Polished Nickel Wall-Mount Shower Arm

Polished Nickel wall-mount replacement shower arm in solid brass, with a 12 1/16-inch width, 8 5/8-inch height, and threaded connections for a rain-type showerhead.

This is a replacement arm for a wall-mount shower installation. Confirm the existing wall-side rough-in and connection before ordering, then follow the installation documentation or use a qualified plumber for the work.

• Wall-Mount Installation

  This is a replacement arm for a wall-mount shower installation. Confirm the existing wall-side rough-in and connection before ordering, then follow the installation documentation or use a qualified plumber for the work.

• Threaded Connections

  The technical drawing shows an NPT 1/2-inch male wall-side connection and a G1/2 male showerhead connection. It is identified as a replacement arm for use with rain-type showerheads, so check both mating threads.

• Confirm the Reach

  The source drawing shows a 12 1/16-inch overall width, 8 5/8-inch overall height, and 13/16-inch tube diameter. It also marks an R3 9/16-inch bend radius, useful when checking wall and ceiling clearance.

• Flow Depends on the System

  The captured source does not publish a flow rate for this arm. Final water flow depends on the connected rain-type showerhead, valve, and plumbing system, so review those components for performance information.

• No Integrated Controls

  This component is an arm, not a valve or shower control. The source does not describe a handle or temperature mechanism. Pair it with compatible shutoff and mixing controls already suited to the installation.

• Solid Brass, Polished Nickel

  Solid brass construction is listed in the source details, and this unit is the harvested Polished Nickel finish. The finish name applies to the selected variant, so coordinate it with the rest of the shower hardware.

• Care Guidance

  The captured source details do not publish a care routine. Confirm the manufacturer's guidance for the Polished Nickel finish before cleaning, and use only a method approved for the finish rather than abrasive products.

• What the Source Lists

  The source identifies this item as a replacement shower arm but does not say what ships in the box or publish a complete package-contents list. Verify the included wall trim, seals, or other installation pieces in the product documentation before beginning work.

Good to know

• 12 1/16-inch width and 8 5/8-inch height; check wall and ceiling clearance.
• The arm has an NPT 1/2-inch male wall-side connection; confirm a compatible mating NPT 1/2-inch wall-side connection.
• G1/2 male showerhead connection; use with a compatible rain-type showerhead.
• Wall-mount installation requires a compatible mating NPT 1/2-inch wall-side connection. Prepare compatible fittings with a qualified installer.
• Shower arm only. Showerhead, valve, and other bathroom hardware are not included.
