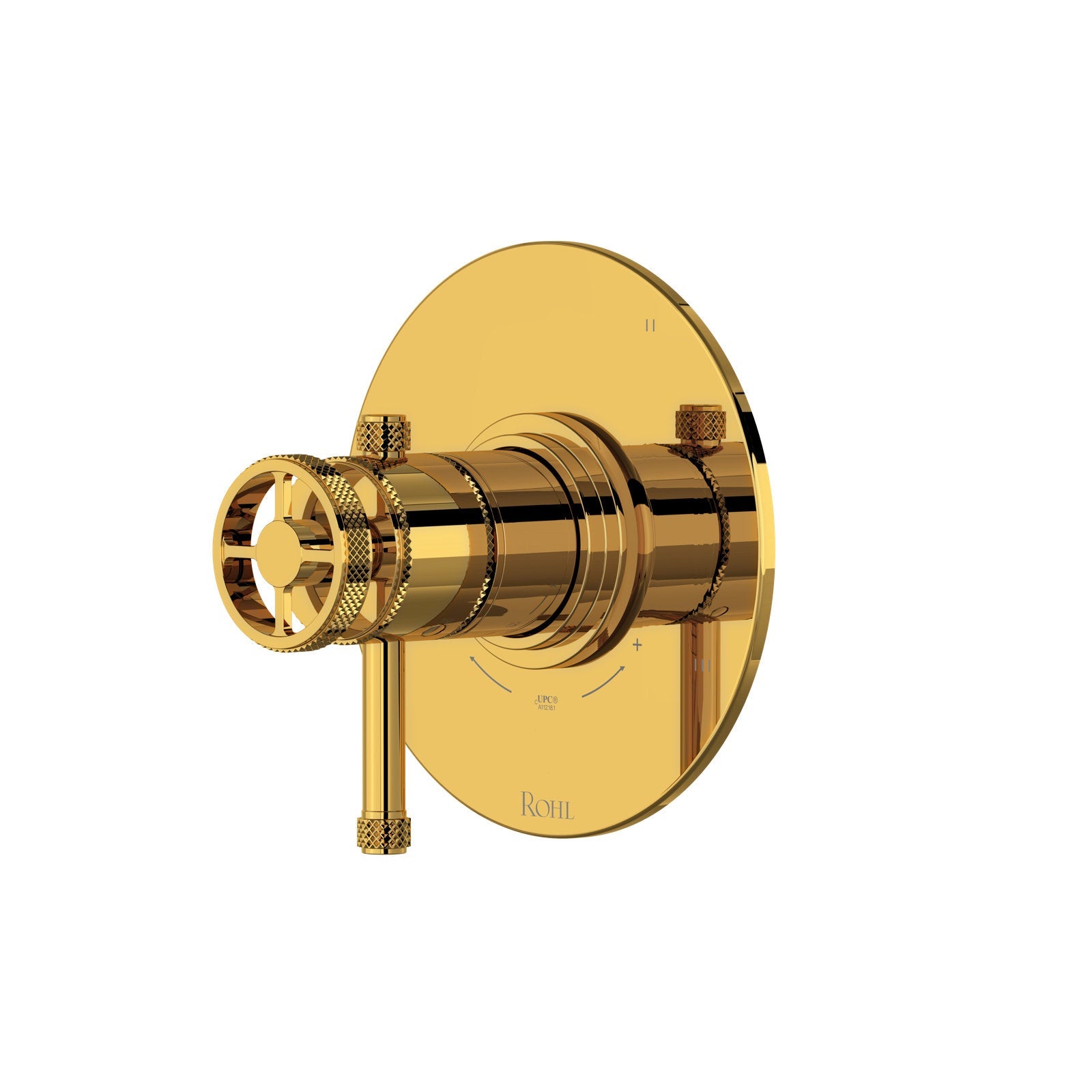

1/2" Thermostatic Pressure-Balance Trim, Unlacquered Brass, 5-Function

This shower trim combines thermostatic and pressure-balance control to balance temperature, pressure, and flow while supporting up to five functions.

Installation requires rough-in planning and should follow the product documents. Confirm valve placement, wall opening, connections, and local requirements before work begins; use a qualified plumber when appropriate.

• Installation planning

  Installation requires rough-in planning and should follow the product documents. Confirm valve placement, wall opening, connections, and local requirements before work begins; use a qualified plumber when appropriate.

• Fit and compatibility

  The source does not publish a rough-in part number or connection dimensions. Check the planned valve body and wall opening for trim compatibility, and verify that the selected Unlacquered Brass finish suits the shower hardware.

• Balanced water flow

  Engineering is described as balancing temperature, pressure, and flow in both high- and low-pressure environments. No numeric flow rate is published, so use the installation documents and local plumbing requirements for final planning.

• Five-function control

  The trim combines thermostatic and pressure-balance technologies in one valve with temperature memory. It supports up to five functions, including three independent functions, with two functions able to run at the same time.

• Material and finish

  Specifications identify brass construction. The selected Unlacquered Brass is a living finish that naturally ages and develops a patina unique to its environment, so expect its appearance to evolve.

• Dimensions and weight

  Overall dimensions are 6.25 in H x 6.25 in W x 3 in D, and listed product weight is 2.79 lb.

• What ships

  The page identifies the cartridge as included with the trim and lists one total piece. It does not identify a rough-in body or other shower components in the box, so confirm any additional pieces before ordering.

• Warranty coverage

  A limited lifetime product warranty is listed, and the commercial warranty field is marked No. Review current warranty terms and installation conditions before work begins.

Good to know

• Confirm the rough-in valve body and wall opening; no connection dimensions are published.
• Overall dimensions: 6.25 in H x 6.25 in W x 3 in D.
• Plan space for the trim plate, controls, and included cartridge during installation.
• Installation and rough-in planning are required. Confirm the valve body, wall opening, connections, and installation documents before work begins.
• Shower trim only. The source page identifies the cartridge as included, but does not publish a complete box-contents list; other shower components are not assumed included.
