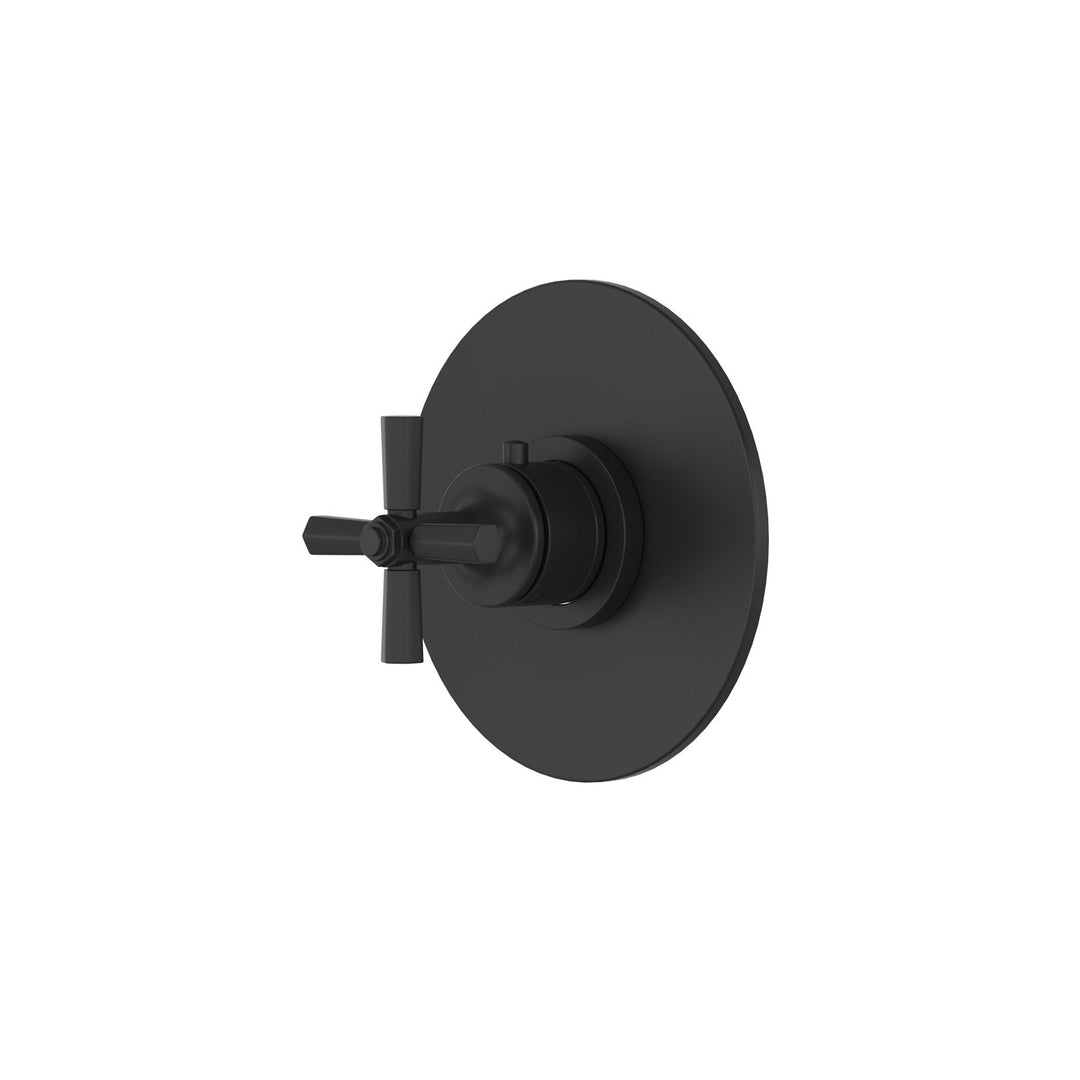

3/4-Inch Thermostatic Shower Valve Trim, Matte Black

Matte Black thermostatic shower trim with temperature-only control, solid brass construction, and compatibility with a required 1005N thermostatic rough valve.

This Matte Black shower trim provides temperature control only, with a solid brass visible assembly for a wall-mounted shower installation. The exact source listing requires a compatible 1005N thermostatic rough valve and a separate volume control trim and rough-in valve for each desired function. The trim measures 6.63 inches high by 6.63 inches wide by 3.5 inches deep and weighs 2.75 pounds.

• Plan the Installation

  This trim is intended for indoor wall mounting. The source requires a 1005N thermostatic rough valve to complete the installation. Review the installation documents, confirm wall access and connections, and use a qualified plumber when appropriate.

• Check Fit and Compatibility

  The source identifies a 3/4-inch thermostatic trim with one hole configuration. Confirm the rough valve, wall opening, water connections, and finished plate clearance before ordering. The compatible rough valve is required and is not included with this trim.

• Temperature Control Only

  This unit provides temperature control only. It does not include volume control. The source says to order a separate volume control trim and R1040R rough-in valve for each shower function you want to add.

• Understand Water Flow

  The compatible 1005N thermostatic rough valve is listed as supporting 12 GPM or 46 LPM. That figure describes the separately ordered rough valve, not a standalone flow promise for the trim. Actual flow depends on the installed system and household pressure.

• Matte Black and Brass

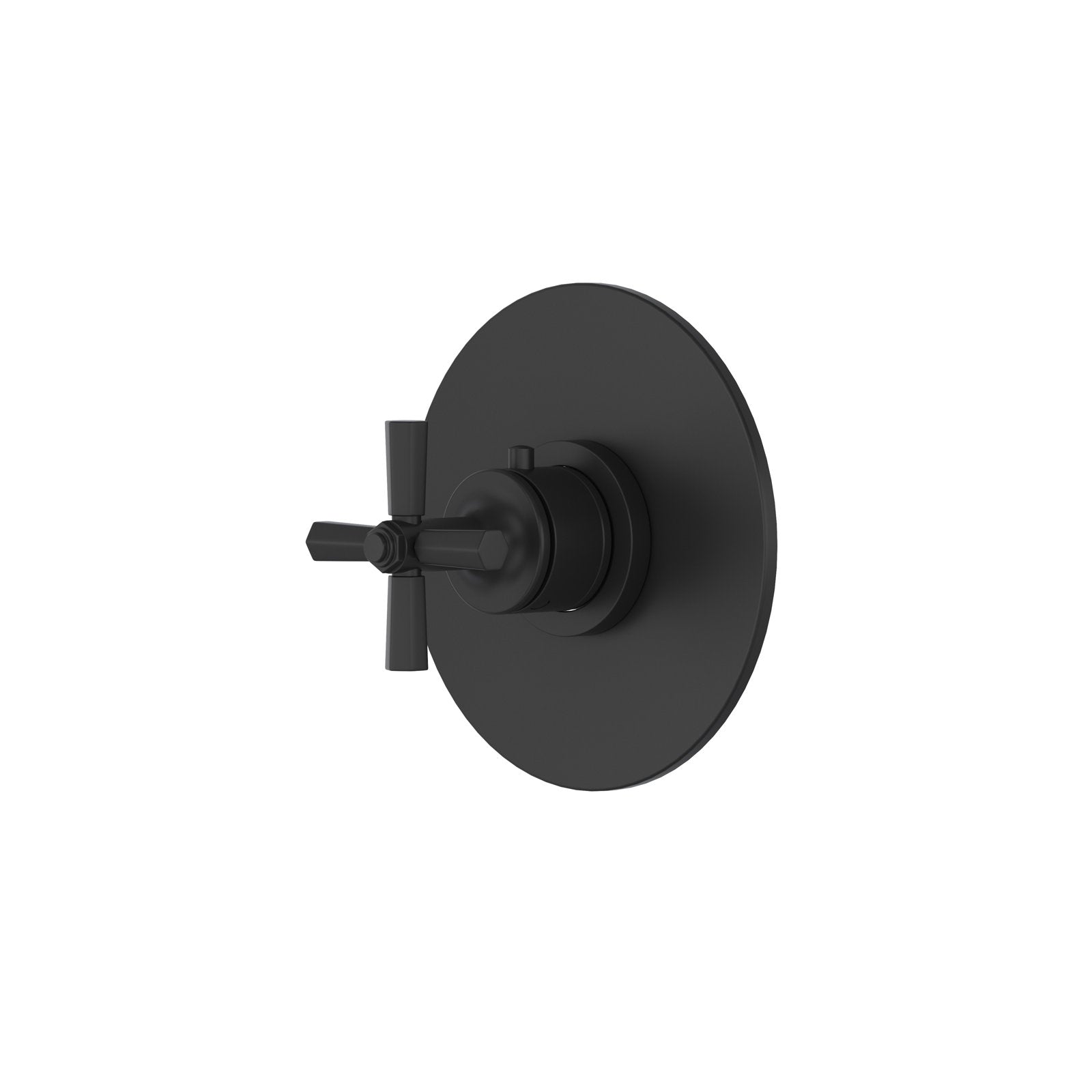

  The selected finish is Matte Black, and the source lists brass as the material with solid brass construction. The round plate and cross handle create a coordinated control surface for the shower wall.

• Review the Footprint

  Overall dimensions are 6.63 inches high by 6.63 inches wide by 3.5 inches deep, with a listed product weight of 2.75 pounds. Check the wall opening, plate clearance, and valve placement against these measurements.

• What Ships

  The source lists one included piece, no included valves, and no hose. It does not itemize the trim package beyond those fields. The 1005N thermostatic rough valve and separate volume-control components are required for a complete system but are not included.

Good to know

• The compatible 1005N thermostatic rough valve is required and ordered separately.
• Overall dimensions: 6.63 in H x 6.63 in W x 3.5 in D.
• Temperature control only; add separate volume-control parts for each desired function.
• Installation is required for indoor wall mounting. Confirm the 1005N thermostatic rough valve, wall opening, connections, and desired shower functions before work begins, using a qualified plumber when appropriate.
• Shower trim only. The compatible 1005N thermostatic rough valve, volume control trim, rough-in valves, shower outlets, and other surrounding plumbing components are not included unless explicitly listed.
