Satin Nickel Thermostatic Shower Valve Trim with Diverter

Satin Nickel thermostatic shower trim with separate temperature and diverter controls, solid brass construction, and compatible rough-in valves sold separately.

The two-handle trim includes set-and-forget temperature memory. Use the lower handle to set temperature, while the upper handle's function follows the compatible rough-in valve selected for the shower.

• Temperature memory

  The two-handle trim includes set-and-forget temperature memory. Use the lower handle to set temperature, while the upper handle's function follows the compatible rough-in valve selected for the shower.

• Match the rough-in

  Four compatible rough-in configurations are listed: R1051BV, R1052BD, R1053BD, and R1055BD. Each valve is sold separately, so match the valve to the outlets and routing your shower plan requires.

• Two-way diversion

  With R1052BD, the upper handle diverts water two ways and controls volume while the lower handle sets temperature. This function belongs to the paired rough-in valve configuration, not to the trim alone.

• Three-way diversion

  With R1053BD, the upper handle diverts water three ways and controls volume while the lower handle sets temperature. Confirm the intended functions and valve placement before the finished wall is closed.

• Flow reference

  Compatible rough-in options are listed at 6.5 GPM, or 24.6 LPM. Use that figure as the paired valve's listed flow reference when planning the shower configuration and selecting its functions.

• Brass and Satin Nickel

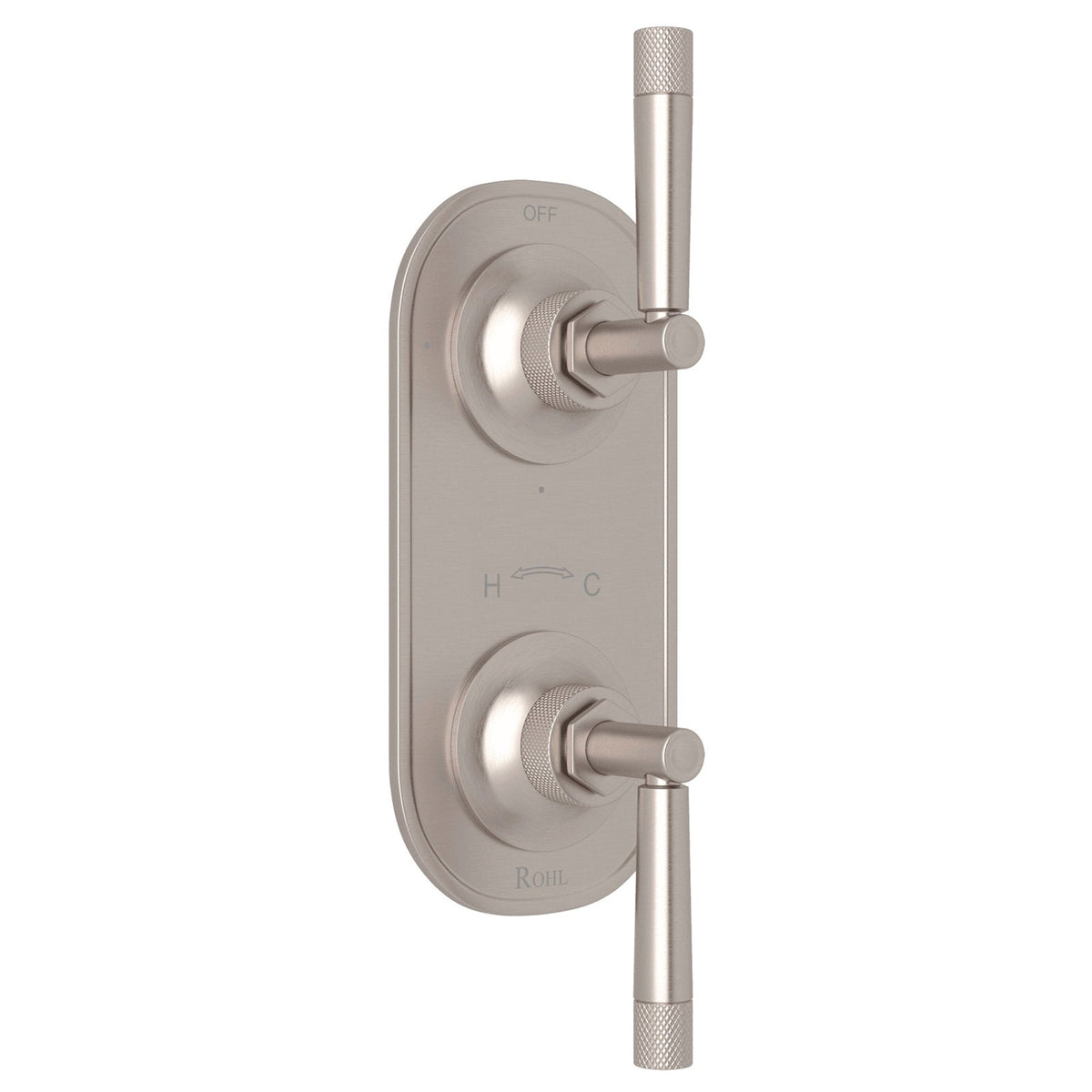

  The trim has solid brass construction, a Satin Nickel finish, a wall plate, and two handles.

• Check the dimensions

  Overall dimensions are 8.5 inches high, 4 inches wide, and 2 inches deep, with a listed product weight of 4 lb. Check the available wall space and trim clearance against these measurements.

• Plan what ships

  This listing includes the thermostatic trim assembly with two controls and a wall plate. Compatible rough-in valves are sold separately, so plan the valve and any other shower components needed for installation.

• Review the warranty

  The specifications list a product warranty with a limited type and lifetime length, plus a commercial warranty. Review the applicable warranty terms and installation requirements before specifying the trim for a project.

Good to know

• Use with a compatible rough-in valve; valve sold separately.
• Overall size: 4″ W × 8.5″ H × 2″ D.
• Upper-handle function depends on the selected rough-in valve.
• Installation requires a compatible rough-in valve; confirm its placement and connections before fitting the trim.
• Thermostatic shower trim only. Compatible rough-in valves are sold separately; other shower components and installation materials are not included unless explicitly listed.
